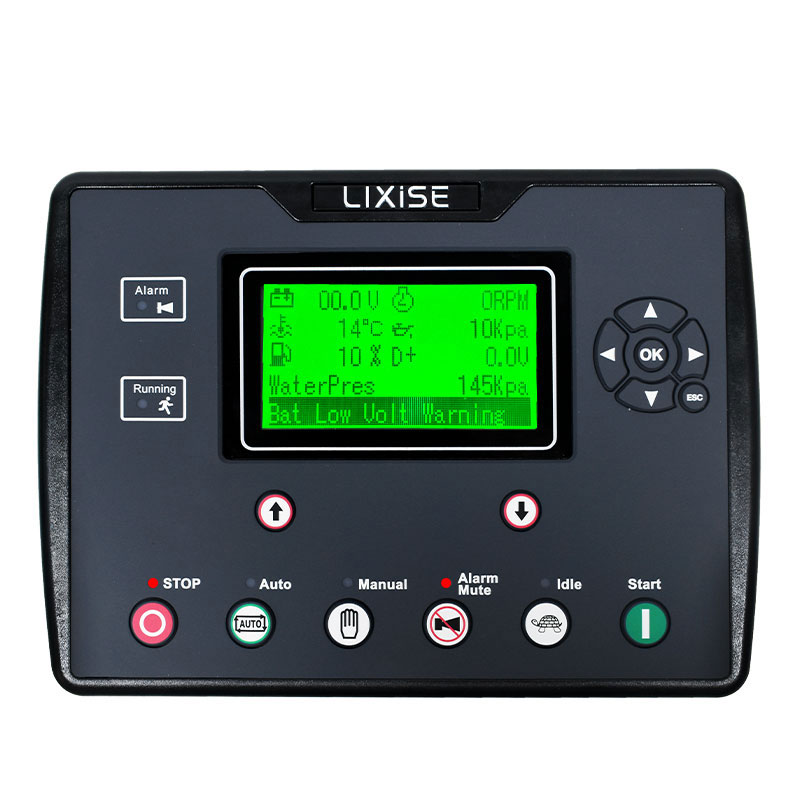

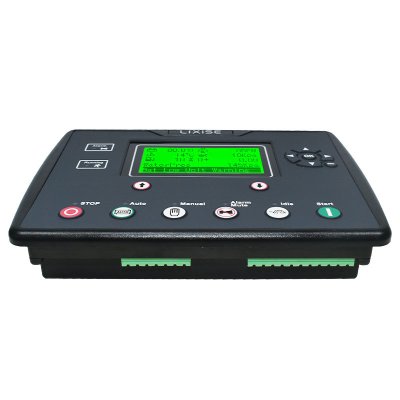

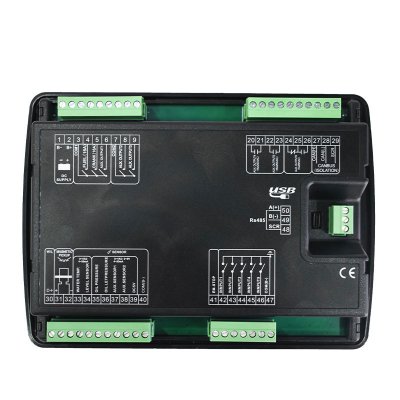

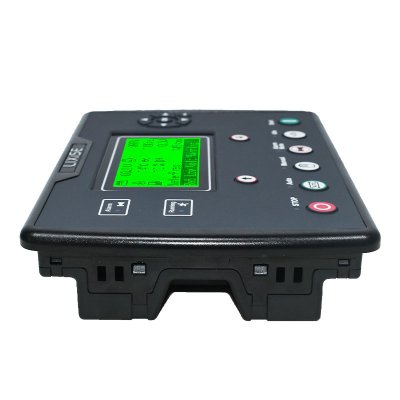

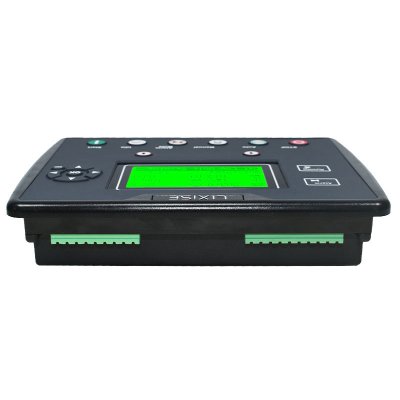

APC615

Historical Fault Records: Includes 100 fault records internally. Supports remote diagnosis, providing a basis for manufacturers to quickly troubleshoot issues.

Automatic start-stop: Supports automatic startup and shutdown of the engine water pump unit, eliminating the need for manual supervision.

Data measurement: Real-time monitoring of key parameters of the unit's operation

Alarm protection: Issues with the equipment will be promptly warned of, ensuring safe operation of the equipment.

Three remote functions: Achieve remote measurement, remote signaling, and remote control, and support remote intelligent management.

Speed control function: Adjust the engine speed, precisely and stably control the water pressure of the pump's water outlet and intake.

Relay speed control output: Meets the requirements of conventional speed control.

CANBUS (SAE J1939) interface: Compatible with industry standard protocols, supports different generator types

Smart head calculation

It supports real-time monitoring of water outlet pressure and can automatically calculate the core parameters of the water pump (such as head, flow rate, cumulative water output, etc.). Among them, the head is calculated intelligently based on the difference between the current water outlet pressure and the static water outlet pressure set by the user.



Relay speed control + CAN speed control dual mode

The control signal is output through the relay to adjust the throttle opening to achieve closed-loop control of the pump speed, stabilizing the inlet and outlet water pressure. The relay contact capacity complies with industrial standards, with rapid response and ensuring timely and accurate adjustment. Additionally, a CANBUS (SAEJ1939) interface is equipped, enabling precise speed control when combined with electronic fuel injection engines. Users can flexibly choose the speed control mode according to the working conditions, balancing reliability and compatibility.



It is widely used in various types of engine water pump control systems. It is used for urban flood prevention and drainage, emergency water supply and firefighting, construction site drainage, and agricultural irrigation pumping stations, etc.
